Plot Setup

If you haven't already installed the VSCode extension and CodeClient, see Installation.

Don't delete your code!

Always make sure to start with an empty plot. Never run Terracotta on plots made using normal DiamondFire coding because there is no way to recover code Terracotta may overwrite.

Creating a Project

  1. Choose a plot on DiamondFire to compile to and join it.
  2. Create a folder to hold all your plot's code and open it in VSCode.

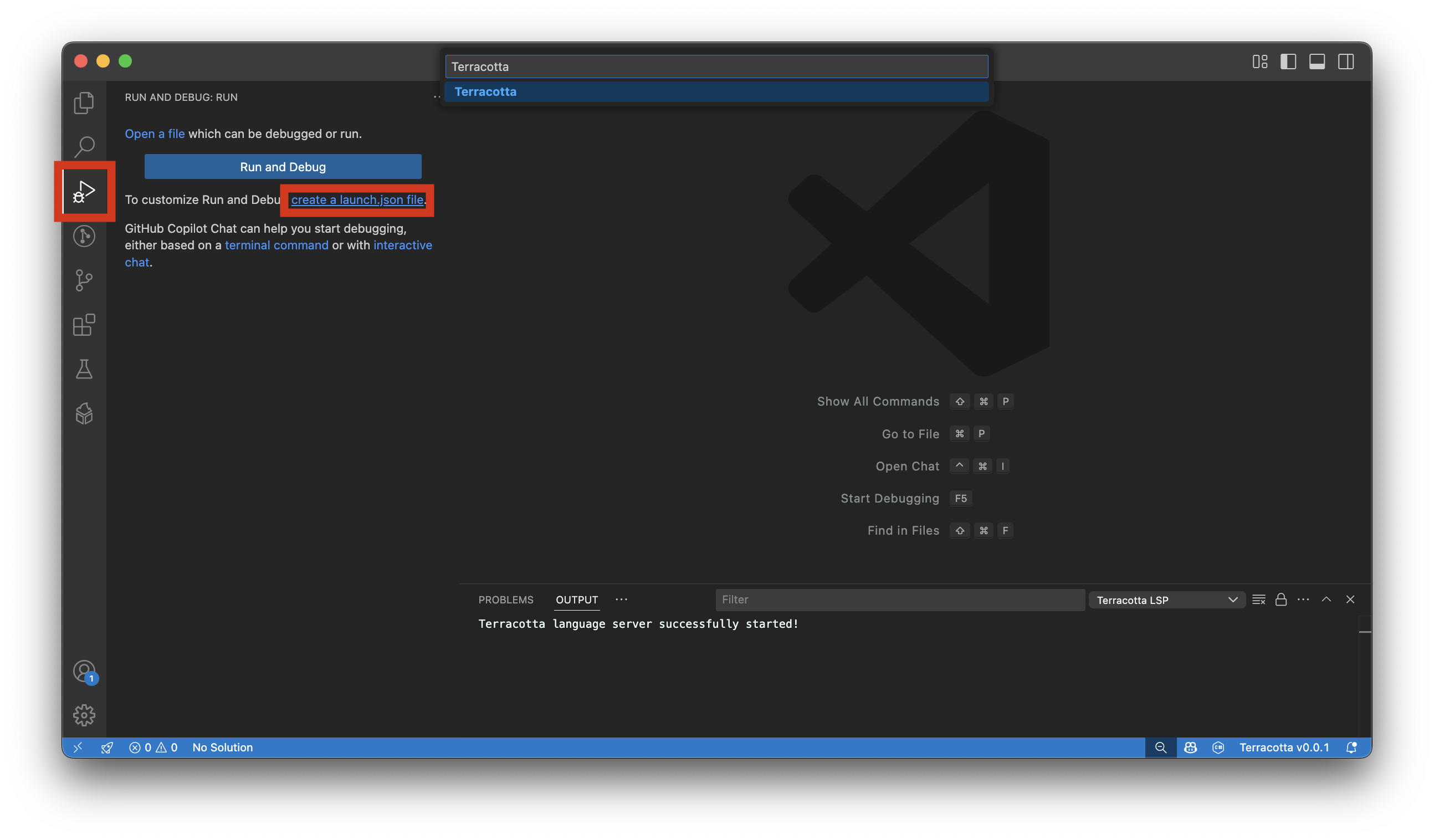

  3. From the Run and Debug menu, click create a launch.json file and select Terracotta from the list of langauges. Create a launch.json file

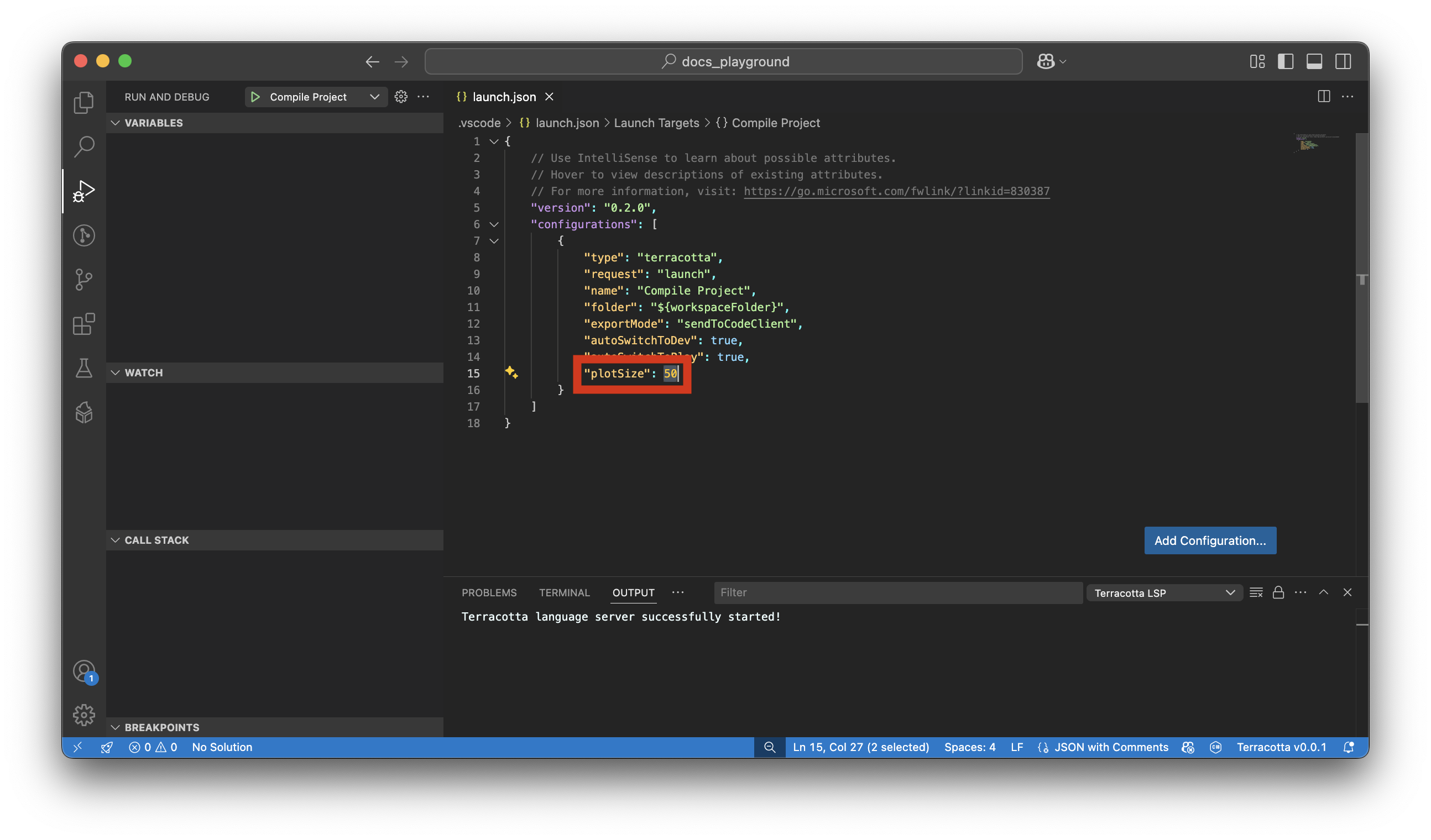

  4. In the newly created launch.json file, make sure to set plotSize appropriately for the plot you will be compiling to. Fill out plot size
Plot Type Plot Size
Basic 50
Large 100
Massive 300
Mega 300
All launch.json parameter explanations
  • folder: The folder to compile. Pretty self-explanatory.
  • exportMode: Can be either "sendToCodeClient" or "saveToFiles".
    • "sendToCodeClient": When running, automatically place compiled templates via CodeClient.
    • "saveToFiles": (CURRENTLY UNIMPLEMENTED!) When running, save all compiled templates to files.
  • autoSwitchToDev: If in play or build mode upon compiling, automatically enter dev mode. If left disabled, trying to compile while in build or play mode will fail. Only applies if exportMode is "sendToCodeClient".
  • autoSwitchToPlay: Automatically enter play mode after all compiled templates have been placed.
  • plotSize: Used by the codeline splitter to know what length templates should be limited to. If you want to "disable" the codeline splitter, just set this to a very high number.

Compiling a Project

Terracotta script files have the extension .tc. Create a script in your project folder to test with:

test.tc
PLAYER_EVENT Join;

default:SendMessage("Hello world!");

In your Minecraft client, run the command /auth. This gives Terracotta permission to manipulate your plot using CodeClient. You will have to repeat this every time you restart either Minecraft or VSCode.

When you can see CC Conected in the bottom right of VSCode, press f5 or click the green play symbol at the top of Run and Debug to compile your plot.

Warning

Sometimes CodeClient will give up while trying to place code. If this happens, run /abort in your Minecraft client and try recompiling.

If you find yourself getting stuck in a plot border, run /worldplot <your plot size>.

Next: Get an overview of how Terracotta works
