Particle

Syntax

Particles are created using the par constructor. Like all constructors in Terracotta, the values passed into the constructor are Expressions and can take full advantage of their features.

par(Particle: str, Data: dict*)

If the data dictionary is omitted, all fields will use their default values.

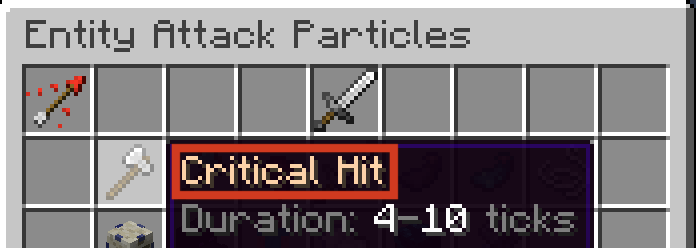

Particle is the name of the potion that appears at the top of a particle effect's button, NOT its minecraft id.

par("Critical Hit")

Data Dictionary

Data about the behavior of a particle like amount, color, spread, etc. are provided inside of a dictionary at the end of the particle constructor.

par["Dust",{
    "Amount" = 10,
    "Spread" = [1,1],
    "Color" = "#ff0000",
    "Color Variation" = 0
}]

Info

While the values passed into the data dictionary can be expressions, the dictionary itself cannot.

Valid

par("Flame",{"Amount" = num:Random(1,10)})

Invalid

global data = {"Amount" = 10};
par("Flame",global data)

The following are all the possible data fields. Amount and Spread can always be specified, the rest may or may not be available depending on the type of particle.

Amount

A num specifying how many particles to spawn.

Defaults to 1 if omitted.

Spread

A list containing two nums, the first for horizontal spread and the second for vertical spread. The numbers inside the list can be expressions, however the list itself cannot.

Defaults to [0,0] if omitted.

Example

"Spread" = [0.5, 0] # Spawns particles in a flat disc.

Motion

A vec specifying the velocity of the particles. Longer length vectors will result in faster movement.

Defaults to vec(1, 0, 0) if omitted.

Example

"Motion" = vec(0, 5, 0) # Launches particles straight up.

Motion Variation

A num (0-100) specifying how much to randomize the motion of the particles. Any digits after the decimal place will be removed by DiamondFire. 0 will mean the exact value of Motion is always used, 100 will mean the direction is completely random and the speed will be anywhere between 100% and 0% of the length of Motion.

Defaults to 100 if omitted.

Color

A str specifying the color of the particles as a hexadecimal RGB color. Six-digit and three-digit colors are both allowed, and a # at the beginning of the string is optional.

Defaults to "#ff0000" if omitted.

Example

# These are all valid ways to specify Color:
"Color" = "#8800ff"
"Color" = "#80f"
"Color" = "000000"
"Color" = "fff"

Color Variation

A num (0-100) specifying how much to randomize the color of the particles. Any digits after the decimal place will be removed by DiamondFire. 0 will mean the exact value of Color is always used, 100 will mean the color is completely random.

Defaults to 0 if omitted.

Fade Color

A str specifying the color to transition to. Uses the same syntax as Color.

Defaults to "#000000" if omitted.

Material

A str specifying the material id of the particles. Uses item ids, NOT names.

Defaults to "oak_log" if omitted.

Example

"Material" = "diamond_block"

Size

A num specifying the size of the particles.

Defaults to 1 if omitted.

Size Variation

A num (0-100) specifying how much to randomize the size of the particles. Any digits after the decimal place will be removed by DiamondFire. 0 will mean the exact value of Size is always used, 100 will mean the size could be anywhere between 3*Size and 0.

Defaults to 0 if omitted.

Roll

A num specifying the rotation of the particles.

Roll uses RADIANS as a unit, not degrees. To convert from degrees to radians, use this.

Defaults to 0 if omitted.

Example

"Roll" = 3.14159 # 180 degrees

Opacity

A num (0-100) specifying the opacity of the particles. Any digits after the decimal place will be removed by DiamondFire. 0 is completely transparent, 100 is completely visible.

Minecraft will round values of 10 and below down to 0 when displaying, meaning the most transparent a particle can be while still being visible will have an opacity of 11.

Defaults to 100 if omitted.

Warning

DiamondFire currently has a hard time handling particles that have the Opacity field. To prevent unexpected glitchy behavior, it's best to avoid any particles that have this field until DiamondFire fixes them.

Operations

txt + par: txt

Converts the right Particle into a String then adds it onto the end of the left Styled Text.

s"Selected trail: " + par("Flame") = s"Selected Trail: Flame[1][0.0,0.0][1.0,0.0,0.0|100%]"

par + txt: txt

Converts the left Particle into a String then adds it at the beginning of the right Styled Text.

par("Bubble") + s" is a particle." = s"Bubble[1][0.0,0.0][1.0,0.0,0.0|100%] is a particle."
